The Extraordinary Cine 2x Macro Lens Update –

film and take pictures around the corner too

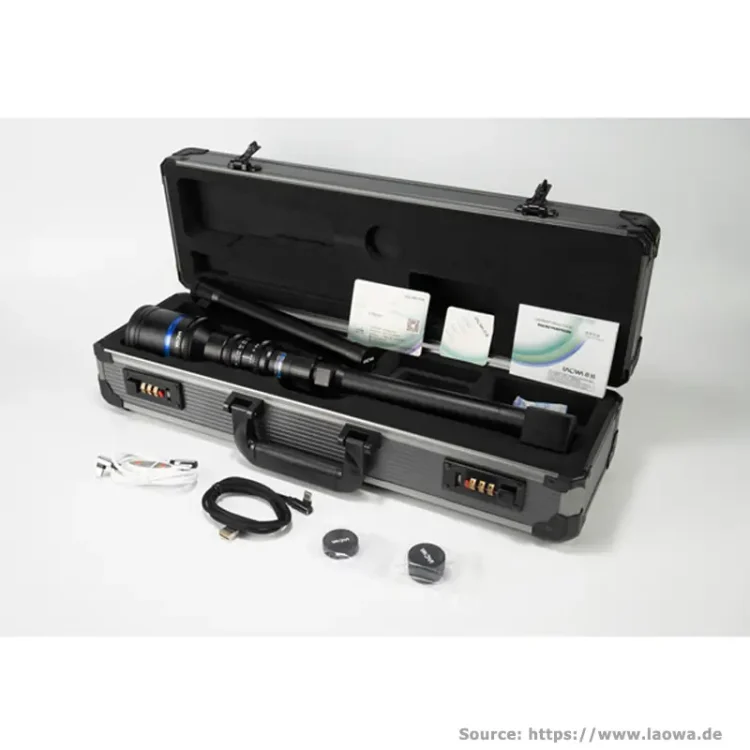

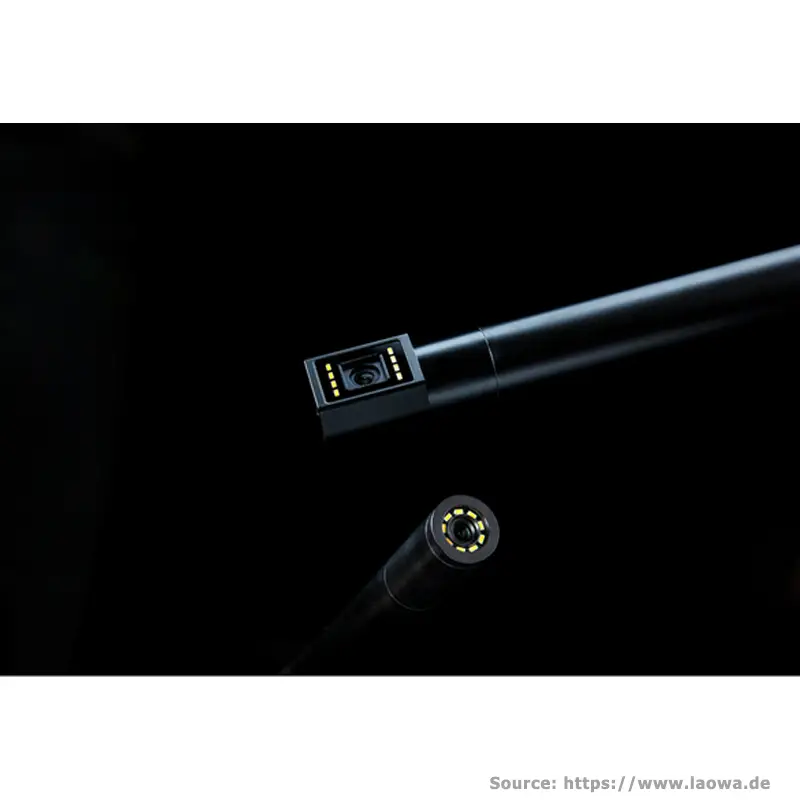

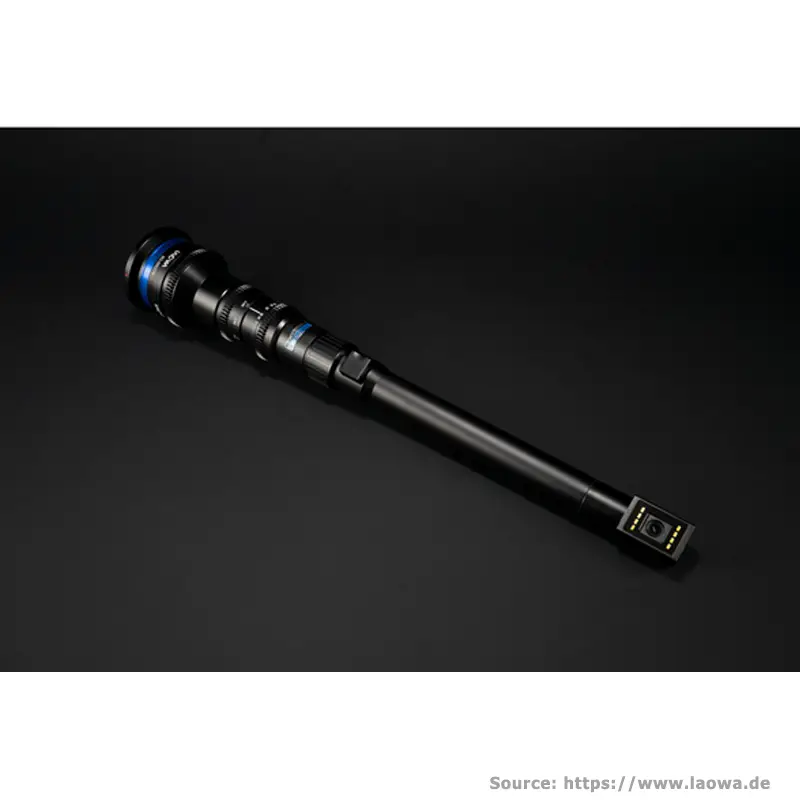

24mm T14 2X Periprobe The LAOWA 24 mm T14 2X Periprobe brings completely new shooting possibilities to the market. With the Macro Probe, unique shots were taken from the perspective of insects that would never have been possible with other lenses. It has long since ceased to be considered an insider tip in the professional world, but is now part of the standard range of internationally active and renowned cine distributors. The unusual housing shape and the professional features, such as a waterproof front panel, offer unprecedented creative possibilities for filmmakers and photographers. The new Periprobe takes all of these properties to a new level. Film and photograph just around the corner – no matter in which direction. The Periprobe is supplied as a set with interchangeable tubes. As before, one tube can simply take pictures straight ahead, the other 90° “around the corner”. With an angle of view of 85° and a very small minimum distance of 2 cm, breathtaking perspectives are possible even in the smallest of spaces. With a focal length of 24 mm, it is a wide-angle macro lens for full-frame cameras with a maximum magnification of 2:1. The Periprobe has a wider perspective than other macro telephoto lenses and a larger aperture range from T14 to T40. Therefore, it has a greater depth of field at short distances. The long and tubular lens barrel, consisting of 28 lens elements in 19 groups, enables many unusual shooting situations. With the 40 cm long and 2 cm thin telescopic tube you can easily work within models, Photograph tree cavities or underwater (up to a depth of approx. 20 cm) without a special housing. It also guarantees a safe distance from the motifs, which is particularly important when photographing animals. The built-in LED light on the tip provides a bright light source. As a power source, you can use a power bank or a USB power adapter. With the enclosed dimmable USB cable, the light can be adjusted in 11 levels. The exchangeable lens barrel makes it easy to switch between the 90° periscope and the straight 0° macro probe. So you have two lenses in one. In addition, the lens can be rotated 360° along the longitudinal axis (can be controlled via module 0.8) by unlocking the orientation ring on the coupling mechanism. The image detail or alignment can be fixed by locking again. Other accessories can also be installed on the hole at the top of the lens. The cine lens with a stepless aperture ring is equipped with standardized module 0.8 toothed rings. Focusing and aperture setting is done manually. Scope of delivery: 90° periscope tube, 0° probe tube, lens front cap, lens rear cap, 2x tube rear cap, 2x tube front cap, dimmable USB cable, USB cable, high-quality case with combination lock

Technical specifications
focal length	24mm
angle of view	85°
sensor type	full frame
Maximum aperture	T14
Minimum aperture	T40
aperture blades	7
aperture setting	manually
aperture ring	stepless
optical construction	28 elements in 19 groups
focus	manually
close-up limit	2 cm from the front lens
magnification	2:1
Dimensions (DxL)	approx. 61×408 mm
weight	approx. 770 g
material	metal
connection	Nikon Z, Sony E, Canon EF, Nikon F, Canon RF, Arri PL, L mount
